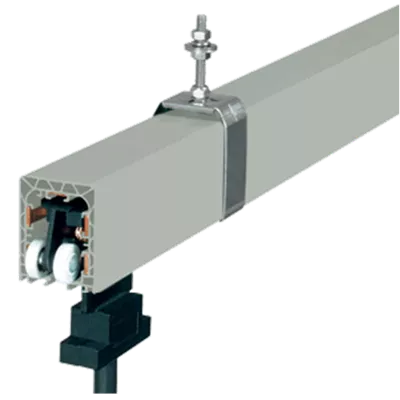

KBH Closed Box PVC Busbar System
The KBH busbar system is suitable for indoor and outdoor use. Current carrying capacity is between 63 A and 200 A. The number of conductors is 4 or 5.
Protection class is IP 23. Standard length is 4000 mm. Application areas are overhead cranes, monorail cranes and electric hoists.
MKH Closed Box Busbar System
The current carrying capacity of the MKH busbar system is between 40 A and 200 A. The number of conductors can vary between 6 and 10. It can be used in indoor and outdoor applications.
Standard length is 4000 mm. Main application areas are overhead cranes, monorail cranes and storage systems.
LSV, LSVG Closed Box Busbar System
Its current carrying capacity is between 60 A and 300 A. The number of conductors can vary between 4 and 11.
It can be used indoors and outdoors. Maximum operating temperature is 100°C.
Standard length is 4000 mm.
KBSL, KSL Closed Box Busbar System
The current carrying capacity of the KBSL and KSL busbar system is between 40 A and 200 A. It has 4 or 5 conductors. It is suitable for indoor applications. Standard length is 4000 mm. Application areas are overhead cranes, monorail cranes and electric hoists.
