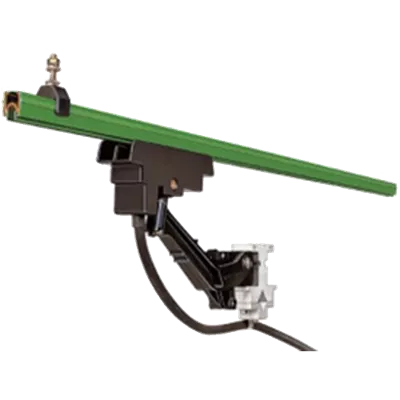

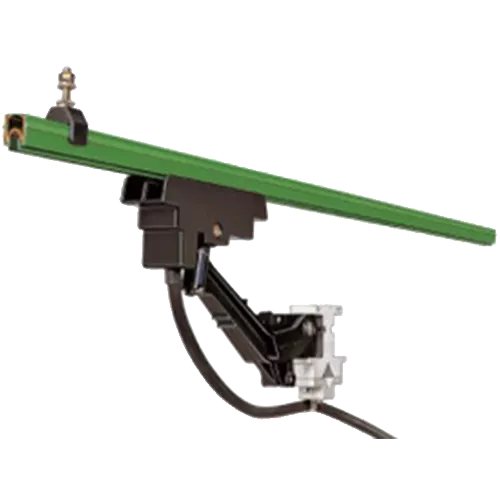

Vahle insulated busbar systems have energy carrying capacity for a wide area of applications.
Insulated Busbars are designed in accordance with VDE 0100 standards. Protection class is IP 23. Current collector enters the bar completely and does not pose any danger during operation.
Standard busbar length is 6000 mm. (U 35 6250 mm.)
| Profile | Type | Carrier Profile Material | Copper Section [mm²] | ||||||
|---|---|---|---|---|---|---|---|---|---|
 |
U10 | C | 100 | ||||||
| F | 40 | ||||||||
| E | 10 | ||||||||
 |
U20 | CE | 80 | ||||||
| AC | 120 | ||||||||
| C | 210 | ||||||||
| U30 | CE | 330 | |||||||
| C | 280-530 | ||||||||
| U40 | C | 600-1000 | |||||||
 |
U15A45 | C | 100 | ||||||
| E | 10 | ||||||||
 |
U25 | AE | 500-800 | ||||||
| U35 | C | 600-1250 | |||||||
| C = Copper, F = Steel, E = Stainless Steel, A = Aluminum | |||||||||
U10 INSULATED BUSBAR
U 10 insulated busbar has been designed according to today's safety needs. Its capacity is between 10 Amperes and 100 Amperes. There are three types of conductors; copper, galvanized steel, stainless steel.
Conductors are selected in accordance with the place where the busbar will be used. Important usage areas are monorail cranes, especially in curved lines, in control systems
U20, U30, U40 INSULATED BUSBARS
U20, U30, U40 insulated busbars provide the necessary current capacity for a wide area of applications. For example; there are several application areas such as cranes, various lifting and carrying systems.
Current carrying capacity is between 80 A and 1000 A
U15, U25, U35 INSULATED BUSBARS
The main usage areas of U 15, U 25, U 35 insulated busbars are traveling bridge cranes, monorail systems, elevator systems, sliding door systems, data and signal transmission.
Their current carrying capacity is between 10 A and 1250 A.
